The goal of this article is to show you how a modern Hard Disk Drive
or HDD built. What are its main parts, how do they look and what are
these parts names and abbreviations. As an example we are going to
disassemble 3.5" SATA drive.
To make it more fun we going to tear to pieces pretty new 1TB Seagate ST31000333AS drive. Let's take a look on our "Guinea pig".
The fancy piece of green woven glass and copper with SATA and power
connectors called Printed Circuit Board or PCB. PCB holds on place and
wires electronic components of HDD. The black painted aluminum case with
all stuff inside called Head and Disk Assembly or HDA. The case itself
called Base.
Now let's remove PCB and see electronic components on the other side.
The heart of PCB is the biggest chip in the middle called Micro
Controller Unit or MCU. On modern HDDs MCU usually consists of Central
Processor Unit or CPU which makes all calculations and Read/Write
channel - special unit which converts analog signals from heads into
digital information during read process and encodes digital information
into analog signals when drive needs to write. MCU also has IO ports to
control everything on PCB and transmit data through SATA interface.
The Memory chip is DDR SDRAM memory type chip. Size of the memory defines size of the cache of HDD. This PCB has Samsung 32MB DDR memory chip which theoretically means HDD has 32MB cache (and you can find such information in data sheet on this HDD) but it's not quite true. Because memory logically divided on buffer or cache memory and firmware memory. CPU eats some memory to store some firmware modules and as far as we know only Hitachi/IBM drives show real cache size in data sheets for the other drives you can just guess how big is the real cache size.
Next chip is Voice Coil Motor controller or VCM controller. This fellow is the most power consumption chip on PCB. It controls spindle motor rotation and heads movements. The core of VCM controller can stand working temperature of 100C/212F.
Flash chip stores part of the drive's firmware. When you apply power on a drive, MCU chip reads content of the flash chip into the memory and starts the code. Without such code drive wouldn't even spin up. Sometimes there is no flash chip on PCB that means content of the flash located inside MCU.
Shock sensor can detect excessive shock applied on a drive and send signal to VCM controller. VCM controller immediately parks heads and sometimes spins down the drive. It theoretically should protect the driver from further damage but practically it doesn't, so don't drop you drive - it wouldn't survive. On some drives shock sensors used for detection even light vibrations and signals from such sensors help VCM controller tune up heads movements. Such drives should have at least two shock sensors.
Another protection device called Transient Voltage Suppression diode or TVS diode. It protects PCB from power surges from external power supply. When TVS diode detects power surge it fries itself and creates short circuit between power connector and ground. There are two TVS diodes on this PCB for 5V and 12V protection.
Let's take a quick look on HDA
You can see motor and heads contacts which were hiding under the PCB.
There is also small almost unnoticeable hole on HDA. This hole called
Breath hole. You maybe heard old rumor which says that HDD has vacuum
inside, well that is not true. HDD uses Breath hole to equalize pressure
inside and outside HDA. From the inside Breath hole closed by Breath
filter to make air clean and dry.
Now it is time to take a look under the hood. We are going to remove the drive's lid.
The lid itself is nothing interesting. Just a piece of steel with
rubber cord for dust protection. Finally we are going to see HDA from
inside.
Precious information stored on platters, you can see top platter on
the picture. Platters made of polished aluminum or glass and covered
with several layers of different compounds including ferromagnetic layer
which actually stores all the data. As you can see part of the platter
covered with the Dumper. Dumpers sometimes called as Separators located
between platters, they reduce air fluctuations and acoustic noise.
Usually dumpers made of aluminum or plastic. Aluminum dumpers better for
cooling air inside HDA.
Next picture shows platters and dumpers from the side
Heads mounted on Head Stack Assembly or HSA. This drive has parking
area closer to the spindle and if power is not applied on a drive, HSA
normally parked like on the picture.
HDD is a precision mechanism and in order to work it requires very
clean air inside. During work HDD may create some very small particles
of metal and oil inside. To clean air immediately a drive uses
Recirculation filter. This hi-tech filter permanently collects and
absorbs even finest particles. The filter located on the way of air
motion created by platters rotation.
Now we are going to remove top magnet to see what is under.
HDDs use very strong Neodymium magnets. Such a magnet is so strong it
could lift up to 1300 times its own weight, so don't put your fingers
between magnet and steel or another magnet - it can develop great
impact. You can see on this picture there is a HSA stopper on the
magnet. HSA stoppers limit HSA movements, so heads wouldn't bang on the
platters clamp and on the other side they wouldn't just fly off the
platters. HSA stoppers may have different construction but there are
always two of them and they always present on modern HDDs. On this drive
the second HSA stopper located on HDA under the top magnet.
And here is what you may see under the top magnet.
There is the other HSA stopper. And you also can the second magnet.
The Voice coil is a part of HSA, Voice coil and the magnets form Voice
Coil Motor or VCM. VCM and HSA form the Actuator - a device which moves
the heads. Tricky black plastic thingy called Actuator latch is a
protection device - it will release HSA when drive un-parking (loading)
heads normally and it should block HSA movements in the moment of impact
if drive was dropped. Basically it protects (should, at least) heads
from unwanted movements when HSA is in parking area.
On the next step we going to take out HSA
HSA has precision bearing to make movements nice and smooth. The
biggest part of HSA milled from piece of aluminum called the Arm. Heads
Gimbal Assembly or HGA attached to the Arm. HGAs and Arms usually
produced on different factories. Flexible orange widget called Flexible
Printed Circuit or FPC joins HSA and plate with heads contacts.
Let's take closer look on each part of HSA.
Voice coil connected to FPC
Here is the bearing
On the next picture you can see HSA contacts
The gasket makes connection airtight. The only way for air to go
inside HDA is through the breathing hole. On this drive contacts covered
with thin layer of gold, for better conductivity.
This is the classic definition of the arm. Sometimes by the arm imply the whole metal piece of HSA.
The black small things at the end of HGAs called Sliders. In many
sources you can find that sliders claimed as actual heads but a slider
itself is not a head it's a wing which helps read and write elements fly
under the platter's surface. Heads flying height on modern HDDs is
about 5-10 nanometers. For example: an average human's hair is about
25000 nanometers in diameter. If any particle goes under the slider it
could immediately overheat (because of friction) the heads and kill them
that's why clean air inside HDA is so important. The actual read and
write elements located at the end of the slider and they are so small
that can only be seen under a good microscope.
As you can see slider's surface is not flat, it has aerodynamical
grooves. These grooves help a slider fly on the certain height. Air
under the slider forms Air Bearing Surface or ABS. ABS makes slider fly
almost parallel to the platter's surface.

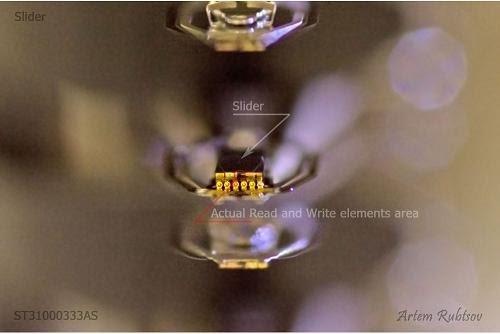

Here is another picture of the slider
You can clearly see heads contacts.
There is very important part of HSA which we haven't discussed yet. It called the preamplifier or preamp. The preamp is a chip, which controls heads and amplifies signals from/to them.
The reason why the preamp located inside HDA is simple - signals
from heads are very weak and on modern HDDs have more than 1GHz
frequency, if take the preamp out of HDA such weak signals wouldn't
survive, they will disappear on the way to PCB.
The preamp has much more tracks going to the heads (right side) than to the HDA (left side), it's because HDD can work only with one "head" (pair of read an write elements) at a time. HDD sends control signals to the preamp and the preamp selects the head which HDD needs at the current moment. This HDD has six contacts per "head", why so many? One contact is for ground, other two for read and write elements. Other two for microactuators - special piezoelectric or magnetic devices which can move or rotate slider, it helps tune up heads position under a track. And finally the last contact is for a heater. The heater can help adjust heads flying height. The heater can heat the gimbal - special joint which connects slider to HGA, the gimbal made from two stripes of different alloys with different thermal expansion. Once gimbal got heated it bents itself toward platter's surface and this action reduces flying height. After cooling down the gimbal straights itself.
Enough about heads, let's continue disassembling. We going to remove top dumper.
That's how it looks
And next picture shows HDA without the top dumper and HSA
Now the top platter is not covered, you also can see the bottom magnet
Let's move further and remove the platters clamp
The platters clamp squeezing platters into the platters packet, so they wouldn't move.
Platters sitting on the spindle hub, the platters clamp creates enough friction to hold platters on the hub when spindle rotates.
Now when nothing holding platters on the hub we are going to remove
the top platter and next picture shows what we may see under.
Now you see how platters packet has room for heads - platters laying
on spacer rings. You can see the second platter and the second dumper.
The spacer ring is a precision detail made of non-magnetic alloy or polymer. Let's take it out.
Finally we are going to shake out the rest of the stuff from HDA and see the base
That's how the breath filter looks. And the breath hole located right
under the breath filter. Let's see the breath filter closer.
Because air from outside definitely has dust the breath filter has
several layers of filtration and it's much thick
To make it more fun we going to tear to pieces pretty new 1TB Seagate ST31000333AS drive. Let's take a look on our "Guinea pig".
Now let's remove PCB and see electronic components on the other side.
The Memory chip is DDR SDRAM memory type chip. Size of the memory defines size of the cache of HDD. This PCB has Samsung 32MB DDR memory chip which theoretically means HDD has 32MB cache (and you can find such information in data sheet on this HDD) but it's not quite true. Because memory logically divided on buffer or cache memory and firmware memory. CPU eats some memory to store some firmware modules and as far as we know only Hitachi/IBM drives show real cache size in data sheets for the other drives you can just guess how big is the real cache size.
Next chip is Voice Coil Motor controller or VCM controller. This fellow is the most power consumption chip on PCB. It controls spindle motor rotation and heads movements. The core of VCM controller can stand working temperature of 100C/212F.
Flash chip stores part of the drive's firmware. When you apply power on a drive, MCU chip reads content of the flash chip into the memory and starts the code. Without such code drive wouldn't even spin up. Sometimes there is no flash chip on PCB that means content of the flash located inside MCU.
Shock sensor can detect excessive shock applied on a drive and send signal to VCM controller. VCM controller immediately parks heads and sometimes spins down the drive. It theoretically should protect the driver from further damage but practically it doesn't, so don't drop you drive - it wouldn't survive. On some drives shock sensors used for detection even light vibrations and signals from such sensors help VCM controller tune up heads movements. Such drives should have at least two shock sensors.
Another protection device called Transient Voltage Suppression diode or TVS diode. It protects PCB from power surges from external power supply. When TVS diode detects power surge it fries itself and creates short circuit between power connector and ground. There are two TVS diodes on this PCB for 5V and 12V protection.
Let's take a quick look on HDA
Now it is time to take a look under the hood. We are going to remove the drive's lid.
Next picture shows platters and dumpers from the side
And here is what you may see under the top magnet.
On the next step we going to take out HSA
Let's take closer look on each part of HSA.
On the next picture you can see HSA contacts
Here is another picture of the slider
There is very important part of HSA which we haven't discussed yet. It called the preamplifier or preamp. The preamp is a chip, which controls heads and amplifies signals from/to them.
The preamp has much more tracks going to the heads (right side) than to the HDA (left side), it's because HDD can work only with one "head" (pair of read an write elements) at a time. HDD sends control signals to the preamp and the preamp selects the head which HDD needs at the current moment. This HDD has six contacts per "head", why so many? One contact is for ground, other two for read and write elements. Other two for microactuators - special piezoelectric or magnetic devices which can move or rotate slider, it helps tune up heads position under a track. And finally the last contact is for a heater. The heater can help adjust heads flying height. The heater can heat the gimbal - special joint which connects slider to HGA, the gimbal made from two stripes of different alloys with different thermal expansion. Once gimbal got heated it bents itself toward platter's surface and this action reduces flying height. After cooling down the gimbal straights itself.
Enough about heads, let's continue disassembling. We going to remove top dumper.
That's how it looks
Let's move further and remove the platters clamp
Platters sitting on the spindle hub, the platters clamp creates enough friction to hold platters on the hub when spindle rotates.
The spacer ring is a precision detail made of non-magnetic alloy or polymer. Let's take it out.
